Introduction

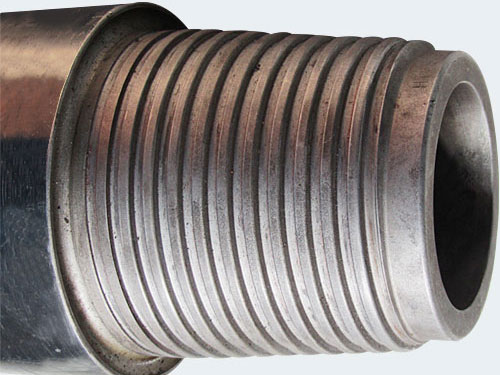

HDD drill pipe is a kind of hollow and thick-walled steel piping (HDD: Horizontal Directional Drilling). As a kind of trenchless tool, it is often used on drilling rigs and horizontal drilling to facilitate the drilling of a wellbore and comes in a variety of sizes. The drill rod is hollow to allow drilling fluid to be pumped through it. Wuxi Geotec Geological Equipment Company mainly supplies friction welding drill pipes. In addition to this type of trenchless equipment, we also provide drill collar, saver sub, drill bits, pulling swivel, hoisting plug, cutter head and drill reamer.
HDD Drill Pipe
Established in 1980s, Wuxi Geotec Geological Equipment Co., Ltd. specializes in producing drill rods, diamond drill bits, core barrels, drill rigs, and other drilling tools. Through more than 20 years’ production experience and marketing experience, we have gained the recognition of a large number of clients both home and abroad. Our trenchless drill pipes have been widely exported to America, United Kingdom, France, Canada, Australia, New Zealand, Indonesia, India, Russia, Malaysia, Thailand, Mongolia, Pakistan, etc. If you have interest in our drill rods, please feel free to contact us.
Technical Parameters of Integral Drill Pipe:
| Specifications (Integral Drill Rod) | Dimension of Drill Pipe | Thread Form | Steel Grade | Min. Bending Radius (m) | Length when Drill Rod Bends 90° (m) | Max. Bending Angle | Max Slope of Drill Pipe % |
Torque (KN. M) | |||||
| O.D. of Pipe (mm) | Thickness of Pipe (mm) | Length (m) | Weight (kg) | O.D. of Joints (mm) | Min. Clamping Space of Pin Joints and Box Joints (mm) | ||||||||
| 50(2") | 50 | 6.5 | 2 | 20 | 57 | Pin Joints: 110 | DH50 | G | 38 | 60 | 3.0" | 5.2 | 2.9 |
| 2.5 | 25 | Box Joints: 175 | S | 30 | 47.1 | 4.8" | 8.3 | 3 | |||||
| 60.3(2 3/8") | 60.3 | 7.5 | 2 | 25.3 | 67 | Pin Joints: 130 | DH60 | G | 42 | 66 | 2.7" | 4.8 | 6 |
| 3 | 37 | Box Joints: 180 | S | 33 | 51.8 | 5.2" | 9.1 | 6.3 | |||||
| 73(2 7/8") | 73 | 8 | 3 | 45 | 80 | Pin Joints: 120 | DH23 | G | 58 | 91.1 | 3.0" | 5.2 | 12 |
| 4 | 58 | Box Joints: 180 | S | 45 | 70.7 | 3.8" | 5.0 | 13 | |||||
| 73(2 7/8") | 73 | 10 | 3 | 58 | 87 | Pin Joints: 120 | DH26 | G | 67 | 105 | 2.6" | 4.5 | 14.5 |
| 4 | 78 | Box Joints: 180 | S | 51 | 80 | 4.5" | 7.8 | 16 | |||||
| 83(3 1/4") | 83 | 9 | 3 | 59 | 92 | Pin Joints: 130 | WM80 | G | 73 | 114.7 | 2.4" | 4.1 | 16.8 |
| 4.5 | 84 | Box Joints: 190 | S | 65 | 102.1 | 4.0" | 6.9 | 18 | |||||
| 89(3 1/2") | 88.9 | 10 | 4.5 | 102 | 104 | Pin Joints: 150 | DH31 | G | 80 | 125.7 | 3.2" | 5.6 | 22.3 |
| 6 | 130 | Box Joints: 230 | S | 72 | 113 | 4.8" | 8.3 | 24 | |||||
| Steel Grade | Yield Strength | Tensile Strength | Elongation Percentage | Impact Power (Akv-J) | ||||
| Min. | Max. | Min. | Min. | 10×10 | ||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | % | (-20℃) | |
| G105 | 105,000 | 724 | 135,000 | 931 | 115,000 | 793 | 15 | ≥68 |
| S135 | 135,000 | 931 | 165,000 | 1138 | 145,000 | 1000 | 13 | ≥54 |
Technical Parameters of Trenchless Friction Welding Drill Pipe:
| Nominal Size | Nominal Weight | Pipe Body | Joint | Torsional Strength Contrast | |||||||||
| Steel Grade | Upset Type | O.D. (mm) |
Wall Thickness (mm) |
Thread Form | O.D. of Joints (mm) | I. D.of Joints(mm) | Bevel Diameter DF (mm) |
Clamping Space of Pin Joints LPB (mm) |
Clamping Space of Box Joints LPB(mm) |
O.D. of Welding Neck DTE/ DPE(mm) |
|||
| 3 1/2 | 13.3 | R G S |
EU | 88.9 | 9.35(11.4) | NC31 | 104.8 104.8 104.8 |
50.8 50.8 41.28 |
100.41 100.41 100.41 |
177.8 177.8 177.8 |
228.6 228.6 228.6 |
80.96 80.96 80.96 |
0.98 0.87 0.86 |
| 4 | 14 | R G S |
EU | 101.6 | 8.38(9.19) | NC38 | 127 127 127 |
65.09 61.91 53.98 |
116.28 116.28 116.28 |
203.2 203.2 203.2 |
266.7 266.7 266.7 |
98.43 98.43 98.43 |
0.97 0.83 0.9 |
| 4 1/2 | 16.6 | E X G S |
IEU | 114.3 | 8.56 | NC46 | 158.8 158.8 158.8 158.8 |
82.55 72.6 76.2 69.85 |
145.26 145.26 145.26 145.26 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
119.06 119.06 119.06 119.06 |
1.09 1.01 0.91 0.81 |
| 20 | E X G S |
10.92 | 158.75 158.75 158.75 158.75 |
76.2 69.85 63.5 57.15 |
145.3 145.3 145.3 145.3 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
119.07 119.07 119.07 119.07 |
1.07 0.96 0.93 0.81 |
||||
| 16.6 | E X G S |
EU | 8.56 | NC50 | 168.28 168.28 168.28 168.28 |
95.25 95.25 95.25 88.9 |
154.0 154.0 154.0 154.0 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
127.0 127.0 127.0 127.0 |
1.23 0.97 0.88 0.81 |
||
| 20 | E X G S |
10.92 | 168.28 168.28 168.28 168.28 |
92.08 88.9 88.9 76.2 |
154.0 154.0 154.0 154.0 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
127.0 127.0 127.0 127.0 |
1.07 0.96 0.96 0.81 |
||||
| 5 | 19.5 | E X G S |
IEU | 127 | 9.19 | 168.28 168.28 168.28 168.28 |
95.25 88.9 82.5 69.85 |
154.0 154.0 154.0 154.0 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
130.18 130.18 130.18 130.18 |
1.23 0.97 0.88 0.81 |
|
| 25.6 | E X G S |
12.7 | 168.28 168.28 168.28 168.28 |
88.9 76.2 69.85 69.85 |
154.0 154.0 154.0 154.0 |
177.8 177.8 177.8 177.8 |
254 254 254 254 |
130.18 130.18 130.18 130.18 |
1.02 0.96 0.86 0.87 |
||||
| 19.5 | E X G S |
9.19 | 5 1/2FH | 177.8 177.8 177.8 184.15 |
95.25 95.25 95.25 88.9 |
170.7 170.7 170.7 170.7 |
203.2 203.2 203.2 203.2 |
254 254 254 254 |
130.18 130.18 130.18 130.18 |
1.53 1.21 1.09 0.98 |
|||
| 25.6 | E X G S |
12.7 | 177.8 177.8 184.15 184.15 |
88.9 88.9 88.9 82.55 |
170.7 170.7 170.7 170.7 |
203.2 203.2 203.2 203.2 |
254 254 254 254 |
130.18 130.18 130.18 130.18 |
1.21 0.95 0.99 0.83 |
||||
| 5 1/2 | 21.9 | E X G S |
139.7 | 9.17 | 177.8 177.8 184.15 190.5 |
101.6 95.25 88.9 76.2 |
170.7 170.7 170.7 180.2 |
203.2 203.2 203.2 203.2 |
254 254 254 254 |
144.46 144.46 144.46 144.46 |
1.11 0.98 1.02 0.96 |
||
| 24.7 | E X G S |
10.54 | 177.8 184.15 184.15 190.5 |
101.6 88.9 88.9 76.2 |
170.7 170.7 170.7 180.2 |
203.2 203.2 203.2 203.2 |
254 254 254 254 |
144.46 144.46 144.46 144.46 |
0.99 1.01 0.92 0.86 |
||||
| 6 5/8 | 25.2 | E X G S |
168.3 | 8.38 | 6 5/8FH | 203.2 203.2 209.55 215.9 |
127.00 127.00 120.65 107.95 |
195.7 195.7 195.7 195.7 |
203.2 203.2 203.2 203.2 |
279.4 279.4 279.4 279.4 |
176.21 176.21 176.21 176.21 |
1.04 0.82 0.87 0.86 |
|
| 27.7 | E X G S |
9.19 | 203.20 209.55 209.55 215.90 |
127.00 120.65 120.65 107.95 |
195.7 195.7 195.7 195.7 |
203.2 203.2 203.2 203.2 |
279.4 279.4 279.4 279.4 |
176.21 176.21 176.21 176.21 |
0.96 0.89 0.81 0.80 |
||||
-
